Waste Consumer PET Bottle Recycling Machine With 300-3000kg / Hr Capacity

Waste Consumer PET Bottle Recycling Machine With 300-3000kg / Hr Capacity

Brand Name : XINTING
Model Number : XT19610
Certification : CE, ISO
Place of Origin : CHINA
MOQ : 1 SET
Price : NEGOTIATE
Payment Terms : TT.LC
Supply Ability : 30 SETS PER YEAR
Delivery Time : 60DAYS
Packaging Details : FILM PACKAGE OR WOOD PACKAGE
material : contact water part use stainless steel 304 316
voltage : customized or 380V50 hz 3 phrase
keywords : consumer PET bottle crushing washing line
application : PET Bottle Recycling Machine
BRAND NAME : ZHANGJIAGANG XINTING MACHINERY
USAGE : waste plastic recycling machines
Contact Now

Waste Consumer PET Bottle Recycling Machine With 300-3000kg / Hr Capacity


PET bottles washing recycling line is widely used to treat waste PET bottle (like: coke bottles, mineral water bottles….etc.) and any scrap PET plastic broken into flakes. It is a crushing, washing, drying line. After finished, these clean flakes could be produced as fibre , straps and so on.

1.Input:pet bottles

2.Out put:clean and dry pet flakes & granules(water content<1%,contamination<250ppm)

3.Capacity:300-2000kg/h

4.Power supply:220v/380v/440v

5.PLC control production line


Zhangjiagang xinting machinery CO.,LTD. can manufacturing the production line according to the customer requirement and final flakes quality requirements;
This production line is high automatic operating and save labor cost and low after maintenance. Our machinery is widely used in domestic and abroad in many countries;


Features FOR waste plastic PET bottles waste consumer bottle recycling machine :
1. We have the Bale opening and feeding system which and equally feeding the material save labor;
2. You can use the manually sorting system to selecting out different color bottles and non-PET material;
3- Metal detector is optional for you which used to take out any kind of metal from the PET bottles;
4- Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation;
5- High speed Dewatering machine and the drying system can guarantee the final PET flakes moisture <1%.
6- The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content..


Product Description for waste plastic PET bottles waste consumer bottle recycling machine

PET Recycling Line:


PET Recycling Machine with the cpaicty Model; 500kg/hr, 1000kg/hr, 1500kg/hr, 2000kg/hr, 3000kg/hr


Pls choose the capacity model you want:


This PET Recycling line include the:


PVC Label Remover machine---Sorting system---PET Crusher machine---Flakes Floating washing tank---Hot Washing system,---Frication washing system---dewatering machinery and fin dust label separator machine---hot air drying system and the Packing system;


Flowchart consumer PET bottle crushing washing line manufacturer in china factory :


Conveyor belt →Label remover machine → Sorting table→Conveyor belt → Crusher → Screw loader→ Float washing tank→ Friction washing machine → Screw loader→Hot washer tank → High-speed friction washing machine → Floating washing tank → Dewatering machine → hot air dryer system → zig zag air classifier system → Silo

No.

Machine ListFunction
1Belt ConveyorBottles conveying
2Bottle Label RemoverRemove above 90% labels for both common and compressed bottle; No flakes waste and no water consumption
3Manual Sorting BeltManually sort out PVC bottle, labels, and other impurities
4Belt ConveyorBottle conveyor tp crusher

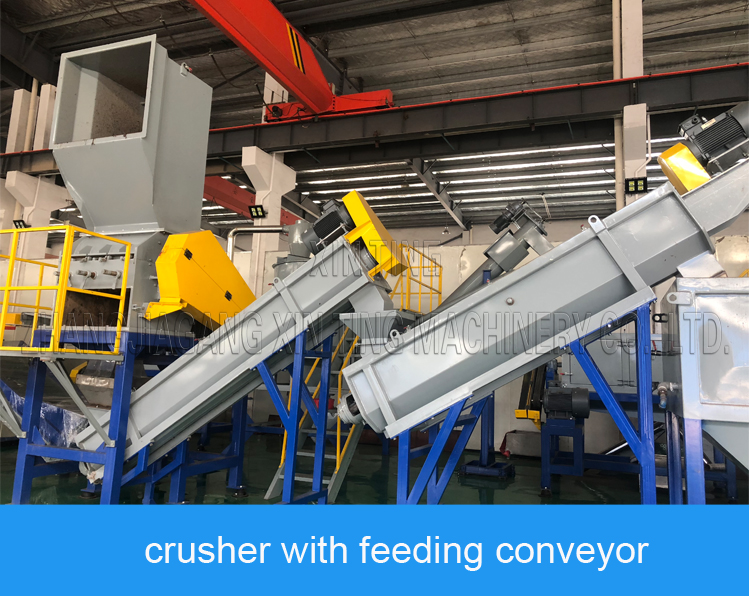

51200 CrusherBottle crushing into flakes
6Horizontal Screw LoaderConveying flakes to next screw loader
7Screw LoaderPET flakes conveying
8Floating WasherWash flakes and remove floating materials as PP, PE and Caustic soda
9Low Speed Friction WasherRemove sand, mud and dirty
10Hot WasherAfter hot washing, it's easier to remove oil, glue
11Screw LoaderPET flakes conveying
12Hot WasherAfter hot washing, it's easier to remove oil, glue
13Screw LoaderPET flakes conveying
14High Speed Friction WasherRemove the glue and dirty
15Screw LoaderPET flakes conveying
16&17Floating WasherWash flakes and remove floating material as PP, PE and Caustic Soda
18Spray WasherRemove the Caustic Soda
19Centrifugal DryerDrying and flakes moisture reach 2%
20Pipeline DryerHot air drying, moisture <1%
21Label Flake SeparatorRemove little amount of label and dust in PET flakes
22Packaging SystemStorage silo for PET flakes
23Electric CabinetElectric control for the complete line, can be customized

PET Flake Quality Reference Table:


Moisture Content<0.9%Label<20ppm
PVC<20ppmVariegated Tablets<30ppm
Glue<10ppmpHNeutral
PP/PE<20ppmTotal Impurity<100ppm
Metal<20ppmFlake Size12mm, 14mm or customized

Production Consumption:


ItemsAverage Consumption Per Ton Flakes
Electricity (kw/h)200 kw/h
Steam (kg)500 kg
Washing Detergent (kg)8 kg
Water (t)2m³


Estimated Plant Parameters:

Capacity(kg/h)100020003000
Power Installed(KW)500700900
Required Area(m²)7509001000
ManPower567
Steam Volume(kcal)600007000080000
Compressed Air (m³/min)101515
Water Supply (m³/h)432264332743388

we have the PET flakes pelletizing line with different capacity if you have request welcome to contact me
